Chenggang Liu

Embedded Active Vision System Based on DSP

Shanghai Jiao Tong University, 2001-2003

Description

Designed and built a complete DSP-based embedded active vision system that autonomously tracks fast-moving objects in real time. Developed the full stack end-to-end: image capture/processing hardware, stepper motor-driven pan/tilt mechanism, and object recognition and tracking software, implemented in Assembly, C, and VHDL.

Publications

  • [Journal] Step Motor Control Strategy in High Speed Pan/Tilt/Zoom Camera System (in Chinese), Chenggang Liu, Jianbo Su, Electric Automation, 2002

Patent: Camera System for Auto-detecting and Tracking Suspicious Subjects, ZL03116154.5 (Issued)

Demos

Fast moving object tracking experiment (1)

Fast moving object tracking experiment (2)

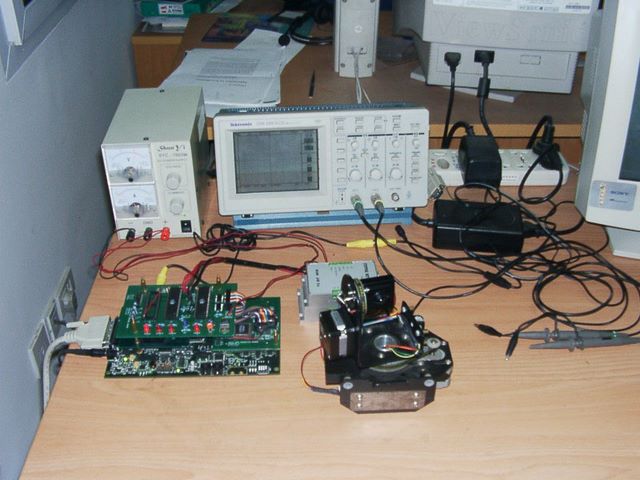

System integration
System integration

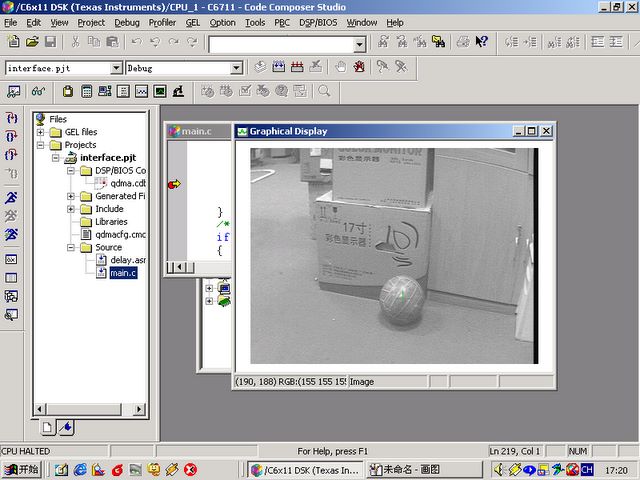

Debug interface
Debug interface

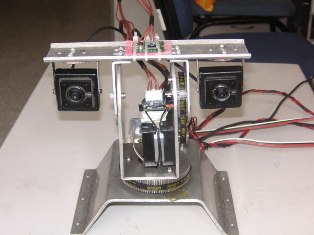

2-DoF pan-tilt camera
2-DoF pan-tilt camera system

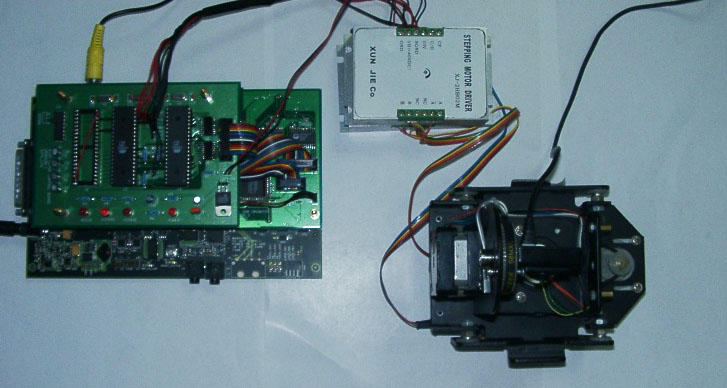

Electrical design
Electrical design

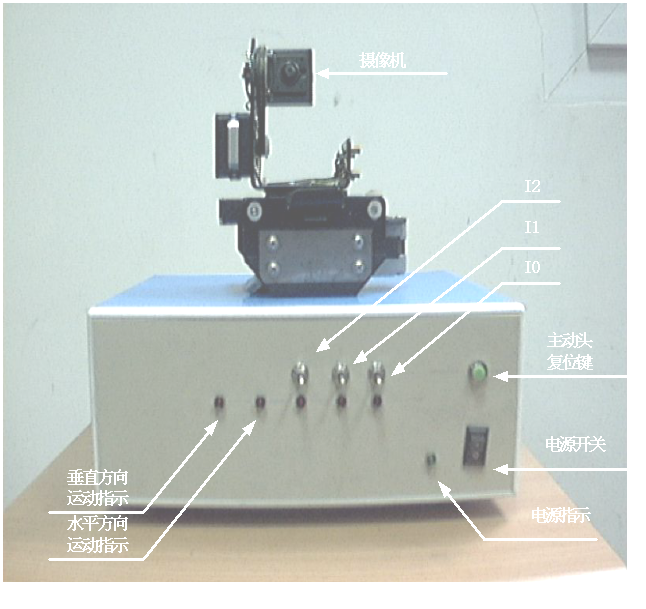

Front view
Front view of the final system

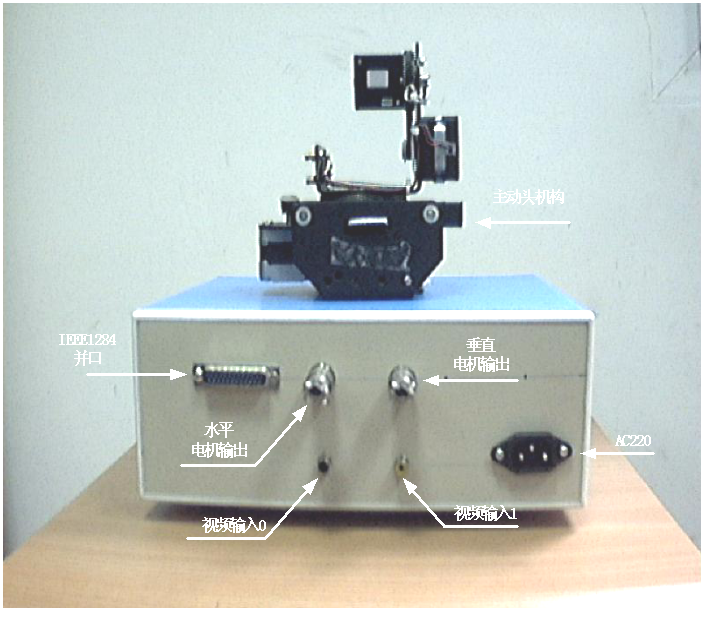

Back view
Back view of the final system
