Trajectory Optimization

• Functional forms:

  • Lagrange Formulation

    \begin{equation} \label{eq:b1} J(u(\cdot),t_f) = \int_{t_0}^{t_f}L(\mathbf{x},\mathbf{u},t)dt \end{equation}

  • Bolza Formulation

    \begin{equation} \label{eq:b2} J(u(\cdot),t_f) = \phi(\mathbf{x}(t_f), t_f) + \int_{t_0}^{t_f} L(\mathbf{x},\mathbf{u},t) dt \end{equation}

    s.t.

    \begin{equation} \label{eq:b3} \dot{\mathbf{x}} = f(\mathbf{x},\mathbf{u},t), \end{equation}

    and the boundary conditions

    \begin{equation} \label{eq:10} \mathbf{x}(t_0)=\mathbf{x}_0,\quad \psi(\mathbf{x}_f,t_f) = 0 \end{equation}

    where \(\mathbf{x}(t)\in \mathbb{R}^n\) is the state, \(\mathbf{u}(t)\in \mathbb{R}^m\) is the control, \(t\) is the independent variable (generally speaking, time), \(t_0\) is the initial time, and \(t_f\) is the terminal time. The terms \(\phi\) and \(L\) are called the terminal penalty term and Lagrangian, respectively.

  • Mayer Formulation In the Mayer formulation, the state vector is extended by: \(x_{n+1}(t)\).

    \begin{equation} \label{eq:m1} x_{n+1}(t) = \int_{t_0}^tL(\mathbf{x},\mathbf{u},t)dt. \end{equation}

    Then the objective is to choose \(\mathbf{u}(t)\) to minimize

    \begin{equation} \label{eq:m2} J(u(\cdot),t_f) = \phi(\mathbf{x}(t_f),t_f) \end{equation}

    s.t.

    \begin{equation} \label{eq:m3} \dot{\mathbf{x}} = \begin{bmatrix} f(\mathbf{x},\mathbf{u},t) \\ l(\mathbf{x},\mathbf{u},t) \end{bmatrix} \end{equation}

    and the boundary conditions

    \begin{equation} \mathbf{x}(t_0) = \begin{bmatrix} \mathbf{x}_0 \\ 0 \end{bmatrix} \end{equation}

    \[ \quad \psi(\mathbf{x}_f,t_f) = 0 \]

  Mayer formulation and Bolza formulation are equivalent, but Mayer form yield a simpler expression.

  Lagrange, Bolza, and Mayer forms are equivalent. In particular, there are constraints on the state of the form

  \begin{equation} \label{eq:state-constraint} S(\mathbf{x}(t)) \le 0 \end{equation}

  and on the control variable

  \begin{equation} \label{eq:control-constraint} C(\mathbf{x}(t),\mathbf{u}(t)) \le 0 \end{equation}

  The optimal control can be derived using Pontryagin's maximum principle (a necessary condition), or by solving the Hamilton-Jacobi-Bellman equation (a necessary and sufficient condition).

The discrete-time optimal control problem: \[ J_k(x_k) = \min_{u_k \in \mathcal{U}} \{ \phi(x_N) + \sum_{k=0}^{N-1} L_k(x_k,u_k) \} \] s.t. \[ x_{k+1} = F(x_k, u_k, k) \]

• Suited for gradient-cheap application, where gradient can be computed inexpensively
• Trajectory optimization is invariant to parameterization
  • trajectory: a mapping from time t to configuration q
  • objective function: a function of trajectory (functional)
• Compared with sampling-based method, optimal control, and trajectory optimization (DDP and iLQR)

• The meaning of the name: Co-variant gradient and Hamiltonian Monte Carlo

  https://personalrobotics.ri.cmu.edu/files/courses/papers/CHOMP12-ijrr.pdf

\[ \xi(t)^* = \arg \min_{\xi} U(\xi(t)) \] where \(U (\xi(t)) = F_{smooth}(\xi(t)) + \lambda F_{obs}(\xi(t))\), and

The smoothness objective: \[\ F_{smooth}(\xi(t)) = \frac{1}{2} \int_{0}^{1} ||\frac{d}{dt} \xi(t) ||^2 dt \]

The obstacle objective: \[ F_{obs}(\xi(t)) = \int_{0}^{1} \int_{B} c(x(\xi(t), u)) || \frac{d}{dt} x(\xi(t), u)|| du dt \]

• The functional gradient \(\nabla U\) is the perturbation \(\phi\) that maximizes \(U[\xi + \epsilon \phi]\) as \(\epsilon \to 0\). Choosing a traditional Euclidean norm \(||\xi||^2 = \int \xi(t)^2 dt\), for any differential objective of form \(F(\xi) = \int L(t, \xi, \xi') dt\), the Euclidean functional gradient: \[ \nabla F(\xi) = \frac{\partial L}{\partial \xi} - \frac{d}{dt} \frac{\partial L}{\partial \dot{\xi}} \]
• Euler-Lagrange equation \[ \frac{\partial L}{\partial q} - \frac{d}{dt} \frac{\partial L}{\partial \dot{q}} = 0 \] Euler-Lagrange equation is the stationary condition for: \[ \min_{q(t)} S(q) = \int_{a}^{b} L(t, q, \dot{q}) dt \]

• The functional gradient of the smoothness objective:

\[ \nabla F_{smooth} = - \ddot{\xi} \]

• The functional gradient of the obstacle objective

\[ \nabla F_{obs} = \int_{B} J^{\top} ||x'|| \big( (I - \hat{x}'\hat{x}^{\top})\nabla{c} -ck\big) du \] where \(k = \frac{(I - \hat{x}'\hat{x}'^{\top}) x''}{||x'||^2}\) is the curvature vector along the workspace trajectory.

The matrix \((I - \hat{x}'\hat{x}'^{\top})\) is a projection matrix that projects workspace gradients orthogonally to the trajectory’s direction of motion.

• To removing the dependence on the parametrization (finite difference), defining a norm on trajectory perturbations to depend solely on the dynamical quantities of the trajectory: \[ ||\xi||_A := \int \sum_{n=1}^{k} \alpha_n (D^n \xi(t))^2 dt \] where \(D\) is differential operator, \(A = D^{\top} D\).

Invariant norm \(||\xi(t)||_{A} := <\xi, A\xi> = \int (D\xi(t))^2 dt\)

• Functional gradients based on the invariant norm: \[ \bar{\nabla}_{A} U(\xi) := A^{-1} \bar{\nabla} U(\xi) \]

refer to the paper

\[ \xi_{i+1} = \arg \min_{\xi} U(\xi_i) + (\xi - \xi_i)^{\top} \nabla U(\xi_i) + \frac{\eta}{2} || \xi - \xi_i||_M \]

This update rule is covariant in the sense that the change to the trajectory that results from the update is a function only of the trajectory itself, and not the particular representation used (e.g. waypoint based), at least in the limit of small step size and fine discretization.

The overall CHOMP objective function is strongly convex – that is, it can be lower-bounded over the entire region by a quadratic with curvature A \[ \xi_{i+1} = \xi_{i} - \eta A^{-1} \nabla U(\xi_{i}) \]

refer: http://arogozhnikov.github.io/2016/12/19/markov_chain_monte_carlo.html

• Intuition \[ p(\xi, \alpha) \propto exp(-\alpha U(\xi)) \]

• define a Hamilton function as \[ H(\xi, \gamma) := U(\xi) + K(\gamma) \] where \(K(\gamma) = \frac{1}{2} \gamma'\gamma\).

  \[ p(\xi, \gamma) \propto exp(-H(\xi, \gamma)) \]

  The system dynamics (Hamilton equation): \[ \frac{d\xi}{dt} = \gamma \] \[ \frac{\gamma}{dt} = -\nabla U(\xi) \]

  The full numerically robust Hamiltonian Monte Carlo. refer to the paper

For the sake of simplicity, let's consider a simple case, where: \[ x = q \]

\[ \dot{x} = u \] \[ L(x,u,t) = c(x) ||u|| + \frac{1}{2} u^{\top} u \] \[ H = c(x) ||u|| + \frac{1}{2} u^{\top} u + \lambda^{\top} u \] \[ \lambda = -H_x = - c_x(x) ||u|| \] Therefore, \[ H = c(x) ||u|| + \frac{1}{2} u^{\top} u - ||u|| c_x(x) u \] and \[ H_u = c(x) ||u||_u + u - ||u||_u c_x(x) u - ||u||c_x(x) \]

In optimal control, we are trying to solve: \[ u = \arg \min_{u} J = \psi(x(t_f)) + \int_{t_0}^{t_f} L(x(t), u(t), t) dt \] s.t. \[ \dot{x}(t) = f(x(t), u(t), t) \] \[ x(t_0) = x_0 \]

The total cost \(J\) is a sum of the terminal cost and an integral along the way. The total cost \(J\) is also called performance index.

Using Lagrange method to augment the cost: \[ \bar{J} = L + \lambda^{\top} (f-\dot{x}) \]

Assuming \(J\) is chosen to be continuous in \(x\), \(u\), and \(t\), we write the variation as ¹: \[ \delta \bar{J} = \psi_x \delta x(t_f) + \int_{t_0}^{t_f} [ L_x \delta x + L_u \delta u + \lambda^{\top} f_x \delta x + \lambda^{\top} f_u \delta u - \lambda^{\top} \delta \dot(x) ] dt \] where subscripts denote partial derivatives.

The last term: \[ -\int_{t_0}^{t_f} \lambda^{\top} \delta \dot{x} dt = -\lambda^{\top} \delta x |_{t_0}^{t_f} + \int_{t_0}^{t_f} \dot \lambda \delta x dt \] and thus

\begin{align} \label{eq:continous-variation} \boxed{ \delta \bar{J} = [\psi_x(x(t_f)) - \lambda(t_f)^{\top}] \delta x(t_f) + \lambda(t_0)^{\top} \delta x(t_0) + \int_{t_0}^{t_f} (H_x + \dot \lambda^{\top}) \delta x dt + \int_{t_0}^{t_f} H_u \delta u dt } \end{align}

where \(H = L + \lambda^{\top} f\) and is called Hamiltonian ².

To extreme Eq. \ref{eq:continous-variation}, there are three components of variation that must independently be zero since we can vary any of \(\delta x\), \(\delta u\), or \(x(t_f)\):

\begin{equation*} L_x + \lambda^{\top} f_x + \dot{\lambda}^{\top} = 0 \end{equation*} \begin{equation*} L_u + \lambda^{\top} f_u = 0 \end{equation*} \begin{equation*} \psi_x(x(t_f)) - \lambda^{\top}(t_f) = 0 \end{equation*}

The evolution of \(\lambda\) is given in reverse time, from the final state to the initial. This is the primary difficulty of solving optimal control problems.

Finally, we have the following equations that extreme the our objective function:

\begin{eqnarray} \label{eq:state-de} \dot{x} &=& f(x(t), u(t), t) \\ \label{eq:co-state-de} \dot{\lambda} &=& -L_x^{\top} - f_x^{\top}\lambda \\ L_u + \lambda^{\top} f_u &=& 0 \end{eqnarray}

s.t. \[ x(t_0) = x_0 \] \[ \lambda^{\top}(t_f) = \psi_x(x(t_f)) \]

Note:

• \(\delta x(t_0) = 0\) if the initial state is fixed.
• The function \(L + \lambda^{\top} f\) is called Hamiltonian ³. It is counterpart in discrete time is the Bellmen equation.
• If \(H\) is not differentiable w.r.t. \(u\), then \(u\) can still be derived using the Pontryagin Maximum Principle: \[ u = \arg \min_{u} H(x, u, t, \lambda) \]
• The Lagrange multiplier is often called co-state.
• If we replace \(u\) in Eqs. \ref{eq:state-de} and \ref{eq:co-state-de} with the solution of the optimal control, then Eqs. \ref{eq:state-de} and \ref{eq:co-state-de} become equations only of \(x\) and \(\lambda\), which are often called Hamiltonian Differential Equations.
• Denote \(V\) as the value function, then \(V_x^{\top}\) is a solution of \(\lambda\).

Gradient method is outlined as follows:

1. For a given \(x_0\), pick a control history \(u(t)\).
2. Solve ODE forwards in time to get state history:
   Propagate \(\dot{x} = f(x(t), u(t), t)\) forward in time to create a state history
3. Solve ODE backwards in time to get co-state history:
   Evaluate \(\psi_x(x(t_f))\), and propagate the co-state backwards in time from \(t_f\) to \(t_0\)
4. At each time step, minimize the Hamiltonian by:
   • choosing \(\delta u = - \epsilon H_u\), where \(\epsilon \in (0, 1]\)
   • update \(u = u + \delta u\)
5. If \(J^{i+1} < J^{i}\), go back to step 2 with \(i = i + 1\). Otherwise, reduce the step size \(\epsilon\) and repeat 4 (backtracking line search).
6. Exit if the early exit conditions are satisfied.

Newton-Raphson method uses second order variation to minimize the Hamiltonian, \(H = L + \lambda^{\top} f\).

The Newton step of \(\delta u\) is given by:

\begin{eqnarray} \label{eq:newton-control-update} \delta u &=& \arg \min_{\delta u} \delta H \\ &=& -H_{uu}^{-1}H_u - H_{uu}^{-1} H_{ux}\delta x \end{eqnarray}

Compared with gradient method, there is an additional term of \(-H_{uu}^{-1}H_{ux} \delta x\), which means \(\lambda\) is changed because \(\delta u\) depends on \(\delta x\).

\begin{equation} \label{eq:lambda-ode} \dot{\lambda}^{\top} = -H_x - H_u u_x = -H_x + H_u H_{uu}^{-1} H_{ux} \end{equation} \begin{equation} \label{eq:lambda_x-ode} \dot{\lambda_x}^{\top} = -H_{xx} - H_{ux} u_x = -H_{xx} + H_{ux} H_{uu}^{-1} H_{ux} \end{equation} \begin{eqnarray} H_u &=& L_u + \lambda f_u \\ H_{ux} &=& L_{ux} + \lambda_x f_u + \lambda f_{ux} \\ H_{uu} &=& L_{uu} + \lambda f_{ux} \end{eqnarray}

Newton's method is outlined as follows:

1. For a given \(x_0\), pick a control history \(u(t)\).
2. For iteration \(i\), solve ODE forwards in time to get state history \(x(t)^{i}\):
   Propagate \(\dot{x} = f(x(t), u(t), t)\) forwards in time to create a state history
3. Solve ODE backwards in time to get co-state history \(\lambda(t)^{i}\):
   Evaluate \(\psi_x(x(t_f))\) and \(\psi_{xx}(x(t_f))\), and propagate \(\lambda(t)\) and \(\lambda_x(t)\) backwards in time from \(t_f\) to \(t_0\)
4. At each time step, minimize the Hamiltonian by:
   \(u^{i+1}=u^{i}-\epsilon H_{uu}^{-1}H_{u} - H_{uu}^{-1}H_{ux}\delta x\)
5. If \(J^{i+1} < J^{i}\), go back to step 2 with \(i = i + 1\). Otherwise, reduce the step size \(\epsilon\) and repeat step 4 (backtracking line search).

Note:

• If the system dynamics is linear and the cost function is quadratic, one step convergence can be achieved with \(\epsilon=1\)

Control parameters are constant variables in the optimal control problem structure, for example: \(L(x,u,\alpha, t)\). According to the maximum principle:

Thus, we have: \[ \delta u = -H_{uu}^{-1} H_u - H_{uu}^{-1} H_{ux} \delta x - H_{uu}^{-1}H_{u\alpha} \delta \alpha \] when it converge, \(H_u = 0\) and: \[ u^{*}_x = -H_{uu}^{-1} H_{ux} \] and \[ u^{*}_{\alpha} = -H_{uu}^{-1} H_{u\alpha} \]

As you can see, \(\alpha\) has similar coefficient as the sate variable. We can actually take \(\alpha\) as a state variable and then solve it in the same way: define \(v = [x^{\top}, \alpha^{\top}]^{\top}\), the dynamics:

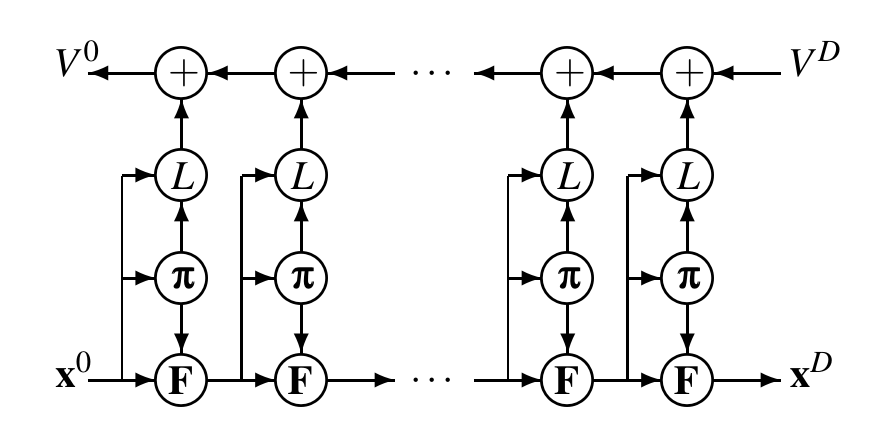

Problem: \[ u(0, \ldots , N-1) = \arg \min_{u} \sum_{k=0}^{N-1} L(x_k, u_k, k) + \phi(x_N) \] s.t.

\begin{equation} \label{eq:ilqr-dynamics} x_{k+1} = F(x_k, u_k, k) \end{equation}

The first order approximation of the dynamics is given by: \[ x(k+1) = F_x \delta x(k) + F_u \delta u(k) + F(x_k, u_k, k) \]

Define a vector as \(v := [1 \ \delta x^{\top} \ \delta u^{\top}]^{\top}\).

The second order expansion of the cost function:

\begin{equation} L(x, u, k) := v^{\top} \begin{bmatrix} L & L_x^{\top} & L_u^{\top} \\ L_x & L_{xx} & L_{xu} \\ L_u & L_{ux} & L_{uu} \end{bmatrix} v \end{equation}

Define \(Z(x(k), u(k), k) := L(x(k), u(k), k) + V(x(k+1), k+1)\), which is often called Q function. The second order approximation of the Q function is given by:

\begin{equation} Z(x_k,u_k, k) = \frac{1}{2} \begin{bmatrix} 1 \\ \delta x \\ \delta u \end{bmatrix}^{\top} \left[ \begin{array}{ccc} 2Z & Z_x^{\top} & Z_u^{\top} \\ Z_x & Z_{xx} & Z_{xu} \\ Z_u & Z_{ux} & Z_{uu} \end{array} \right] \begin{bmatrix} 1 \\ \delta x \\ \delta u \end{bmatrix} \end{equation}

For the shake of simplicity, let us denote the hessian matrix as:

\begin{equation} \left[ \begin{array}{cc|c} 2Z & Z_x^{\top} & Z_u^{\top} \\ Z_x & Z_{xx} & Z_{xu} \\ \hline Z_u & Z_{ux} & Z_{uu} \end{array} \right] = \left[ \begin{array}{c|c} Z_{11} & Z_{12} \\ \hline Z_{21} & Z_{22} \end{array} \right] \end{equation}

where \(Z_{11} \in R^{(1 + N) \times (1 + N)}\), \(Z_{12} \in R^{(1+N) \times M}\), \(Z_{21} \in R^{M \times (1 + N)}\) and \(Z_{22} \in R^{M \times M}\)

Then the optimal control taken a Newton step is given by: \[ u^*(k) = u(k) - \alpha k - K \delta x(k) \] where \[ \left[k | K \right] = - Z_{22}^{-1}(k)Z_{21}(k) \in R^{M \times (1 + N)} \]

The value function is the Q function when the control is optimal. Its second order approximation is thus given by⁴:

\begin{equation} \label{eq:ilqr-value-update} V(x, k) = \begin{bmatrix} 1 \\ \delta x \end{bmatrix}^{\top} (Z_{11}(k) - Z_{12}(k)Z_{22}^{-1}(k) Z_{21}(k)) \begin{bmatrix} 1 \\ \delta x \end{bmatrix} \end{equation}

To make it symmetric, \[ V = 0.5 (V^{\top} + V) \]

For convenience, let's define a dynamics Jacobian as:

\begin{equation} \label{eq:ilqr-dynamics-jacobian} D:= \begin{bmatrix} 1 & 0 & 0 \\ 0 & F_x^{\top} & F_u^{\top} \end{bmatrix} \end{equation}

The the chain rule for Q function update is given by:

\begin{equation} \label{eq:ilqr-q-update} Z(k) = L + D^{\top} V(k+1) D \end{equation}

where \[ V(N) = \phi(x_N, N) \] \[ V_x(N) = \phi_x(x_N, N) \] \[ V_{xx}(N) = \phi_{xx}(x_N, N) \]

The iLQR is outlined as follows:

1. For a given \(x_0\), pick a control history \(u(0, \ldots, N-1)\)
2. Simulate forwards in time to get the state history, \(x(0, \ldots, N)\), according to the system dynamics of Eq. \ref{eq:ilqr-dynamics}
3. Simulate backwards in time to update the Q history, \(Z(N, \ldots, 0)\), according to Eqs. \ref{eq:ilqr-value-update}, \ref{eq:ilqr-dynamics-jacobian} and \ref{eq:ilqr-q-update}.
4. if the initial state is open, \(\delta x(0) = V_{xx}^{-1}(0) V_x(0)\). Otherwise, \(\delta x(0) = 0\). recorder the current cost as \(J^{0}\) and its maximum possible decrease as: \[ \Delta J = V(0) - J^0 \]
5. early stop:
   • if \(\Delta J > 0\), return ERROR.
   • else if \(\Delta J > - abs\_tols\) or \(|\Delta J / J^0| < rel\_tol\), return SUCCESS
   • if exceed iteration number, return WARNING
6. Backtracking line search⁵:
   1. Start with \(\alpha = 1.0\) and iteration number \(i\) as 1
   2. Simulate forwards in time to get the state and control history. \[ x(0) \gets x(0) - \alpha \delta x(0) \] \[ u(k) \gets u(k) - \alpha k - K \delta x(k) \]
   3. Evaluate the resultant trajectory and denote its cost as \(J^i\).
   4. if \(J^{i} < J^{0} - \alpha * c * |\Delta J|\), where \(c \in (0, 0.5)\) is the Armijo factor (typically \(c=0.25)\), then return SUCCESS. Otherwise, \(\alpha \gets \tau \alpha\), where \(\tau \in (0,1)\) is the backtracking parameter, and repeat b). If \(i > i_{max}\) or \(\alpha\) becomes zero, return ERROR.

For finite horizon LQR, we are solving: \[ u(t) = \arg \min_{u} x_f^{\top} Q(t_f) x_f + \int_{t_0}^{t_f} \frac{1}{2} x^{\top}(t) Q(t) x(t) + \frac{1}{2} u^{\top}(t) R(t) u(t) \] s.t. \[ \dot{x}(t) = A(t) x(t) + B(t) u(t) \]

The Hamiltonian: \[ H = \frac{1}{2} x^{\top} Q x + \frac{1}{2} u^{\top} R u + \lambda^{\top} (A x + B u) \] The optimal control is given by: \[ H_u = 0 \] then we have: \[ u^*= -R^{-1} B^{\top} \lambda \]

For the co-state: \[\dot{\lambda} = -H_x^{\top} = -Q x - A^{\top} \lambda \]

Using the optimal control, the system dynamics with co-state can be written as:

\begin{equation} \label{eq:Hamiltonian-de} \frac{d}{dt} \begin{bmatrix} x \\ \lambda \end{bmatrix} = \begin{bmatrix} A(t) & - B(t)R^{-1}(t)B^{\top}(t) \\ -Q(t) & -A^{\top} (t) \end{bmatrix} \begin{bmatrix} x \\ \lambda \end{bmatrix} \end{equation}

Note:

• Eq. \ref{eq:Hamiltonian-de} is called Hamiltonian DE.
• The \(2n \times 2n\) matrix is called Hamiltonian for the problem.
• with conditions: \(x(0) = x_0\) and \(\lambda(t_f) = Q_f x(t_f)\), the problem is a Two-Point Boundary Value problem.

Since \(\lambda(t_f) = Q_f x(t_f)\), let's try a connection \(\lambda = P(t) x(t)\), we have:

\begin{equation} \label{eq:riccati-de} -\dot{P} = P(t)A(t) + A(t)^{\top} P(t) + Q(t) - P(t)B(t)R^{-1}(t)B(t)^{\top} P(t) \end{equation}

s.t. \[ P(t_f) = Q_f \]

Note:

• Eq. \ref{eq:riccati-de} is Riccati differential equation.
• It can be derived by Eq. \ref{eq:lambda_x-ode}.
• we can integrate backwards in time to get \(P(t)\) and then get optimal control: \[ u^*= -R^{-1}(t) B^{\top}(t) P(t) x(t) \]

For finite horizon LQR, we are solving: \[ \min_{u} \int_{0}^{\infty} \frac{1}{2} x^{\top}(t) Q x(t) + \frac{1}{2} u^{\top}(t) R u(t) \] s.t. \[ \dot{x}(t) = A x(t) + B u(t) \]

\(P\) is found by solving the continuous time algebraic Riccati equation:

\[ 0 = PA + A^{\top} P + Q - PBR^{-1}B^{\top} P \]

The optimal control is given by: \[ u = -R^{-1}B^{\top} P x \]
